Leiton PCB Solutions Pvt Ltd – Production & Service in India, Backed by German Engineering

Leiton India offers fast-turn prototypes, small series, and medium production volumes—with lead times starting from just 2 working days. Our growing team in Bangalore manages your projects with technical precision, responsiveness, and a deep understanding of local requirements. Thanks to our close collaboration with trusted manufacturing partners, we ensure high-quality PCB solutions tailored to your specifications.

For highly complex technologies or PCBs requiring special materials and tolerances, we draw on the experience and capabilities of our German headquarters in Berlin. These boards are produced under strict quality standards and are ideal for advanced applications or certified industries.

Larger series and cost-sensitive projects benefit from our established infrastructure in China, where a dedicated local team manages production, quality control, and logistics in direct coordination with our engineers. This setup ensures stable quality and reliable delivery—at globally competitive prices.

Leiton India provides end-to-end support: from your initial inquiry through to production planning, technical clarification, and logistics. CAM data preparation and expert reviews are conducted in close cooperation with our global team, ensuring consistency and precision from start to finish.

With Leiton India, you benefit from German engineering know-how, local service, and a global production network. Whether you're sourcing a quick prototype or planning long-term series production, we provide reliable solutions—built on experience, expertise, and trust.

Short Facts

Printed Circuit Boards "Made in India"
from 2 working days production time
Technology Advisory Team in Bangalore
CAM processing in Bangalore
Laboratory and testing equipment
Express prototypes to large series
Wide selection of special technologies
Comprehensive online calculator

Prototypes Made in India

Drilling Department
A range of 1- to 6 spindle drilling machines are available for flexible adjustment to order size and lead time. Mechanical drills down to 0,20mm are available. This ensures high precision and consistent quality even for complex multilayer boards.
Through-Hole-Plating

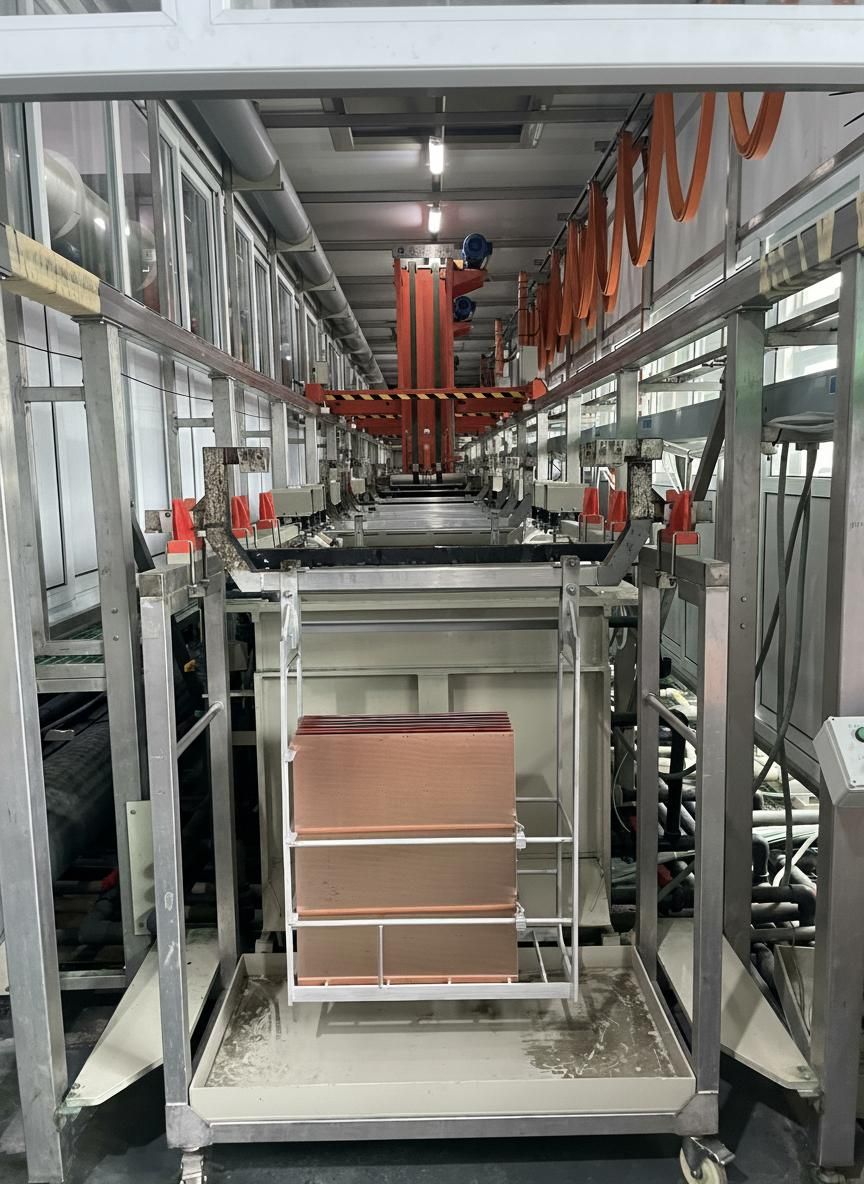

The plating process (PTH) is a computer-controlled immersion copper process for best quality and reliability. This guarantees optimal conductivity and durability for all plated through-holes.
DES-Line (Development, Etching Stripping)
One long DES-line allows maximum throughput combined with optimized quality for line/space distance down to 4mil (0,10mm). This enables fine structures to be produced reliably, even for demanding circuit designs.
Copper Exposure
Clean-room environment is maintained inside the exposure room for copper and solder mask. This controlled and encapsulated process ensures sharp imaging and prevents defects during production.
Wet Process
All wet processes are maintained in a controlled environment, well documented and within strict quality ranges. This ensures stable production conditions and consistently high board quality.
AOI (Automatic Optical Inspection)
High-resolution camera systems in our AOI automatically inspect inner and outer layers for defects such as shorts, opens, and line width variations. This guarantees early detection of faults and ensures only flawless boards move forward in production.
Multilayer Lamination
Layers are pressed together under high temperature and pressure using state-of-the-art lamination presses up to TG180 PCBs. Precise control of heat and pressure ensures stable bonding and minimal warpage. This process enables reliable multilayer stack-ups with excellent mechanical and electrical performance.
E-Test

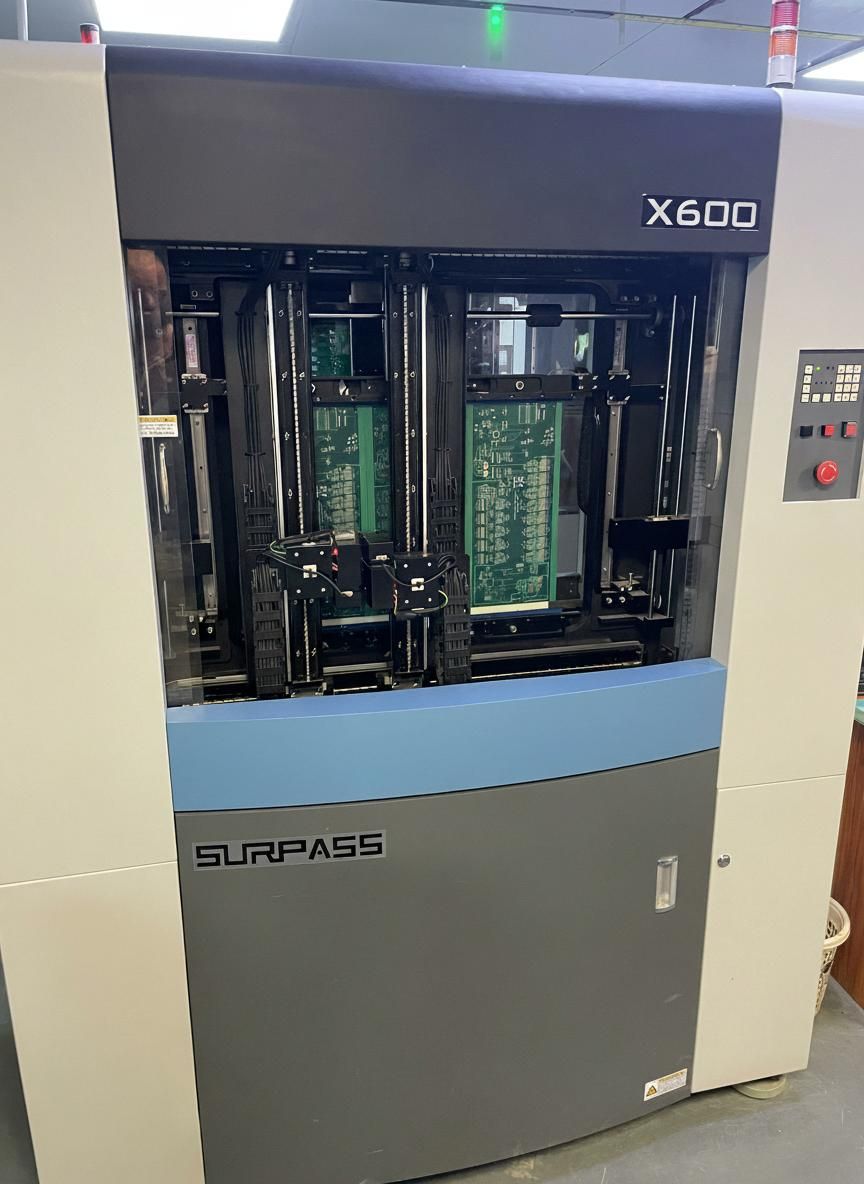

Each PCB is tested for continuity and isolation using advanced flying probe and fixture systems. This verifies that all nets are correctly connected and free of shorts. This final check ensures full functionality and maximum reliability before delivery.
Routing Department
Finished panels are separated into individual PCBs using CNC routing or V-scoring with high precision. Edges and contours are machined according to customer specifications. This guarantees exact board dimensions and smooth handling in further assembly processes.

Contact

Aravind Mesta

Asst Manager - Technology

+91-7975418531

Jayasimha BR

Chief Operating Officer

+91-7975418531

Vishwakumar HC

Asst Manager - CAD/CAM

+91-7975418531

Service

Leiton embodies service, and therefore, we offer a variety of services beyond the actual circuit board. In addition to comprehensive online information, our technology experts in Bangalore can be consulted at any time. The offering extends beyond data verification, technology recommendations, and material advice.

Individual measurement reports can be created, or various frameworks and call-off storage conditions can be agreed upon, significantly optimizing both quality and liquidity.

CALCULATE PCBS ONLINE NOW

Short Facts

Technical contact persons in Berlin
Consultation on special technologies
Data verification in Berlin
Quality assurance teams in Germany and China
Measurement reports & special requirements
Stock retrieval and framework orders
Double quality control
Series transfer
Online: Information, tools & downloads

Service

CAM Design for Manufacturing
All CAM data is checked for manufacturability and optimized as part of the production preparation. In case of uncertainties, you will receive comprehensive feedback with explanations and visual materials from Berlin.
Technical Support
Service and technical advice are the core of Leiton! Technically challenging projects are the spice of life, and we are happy to advise you wholeheartedly to maximize the technical potential of your circuit boards.
Interim Warehouse Berlin

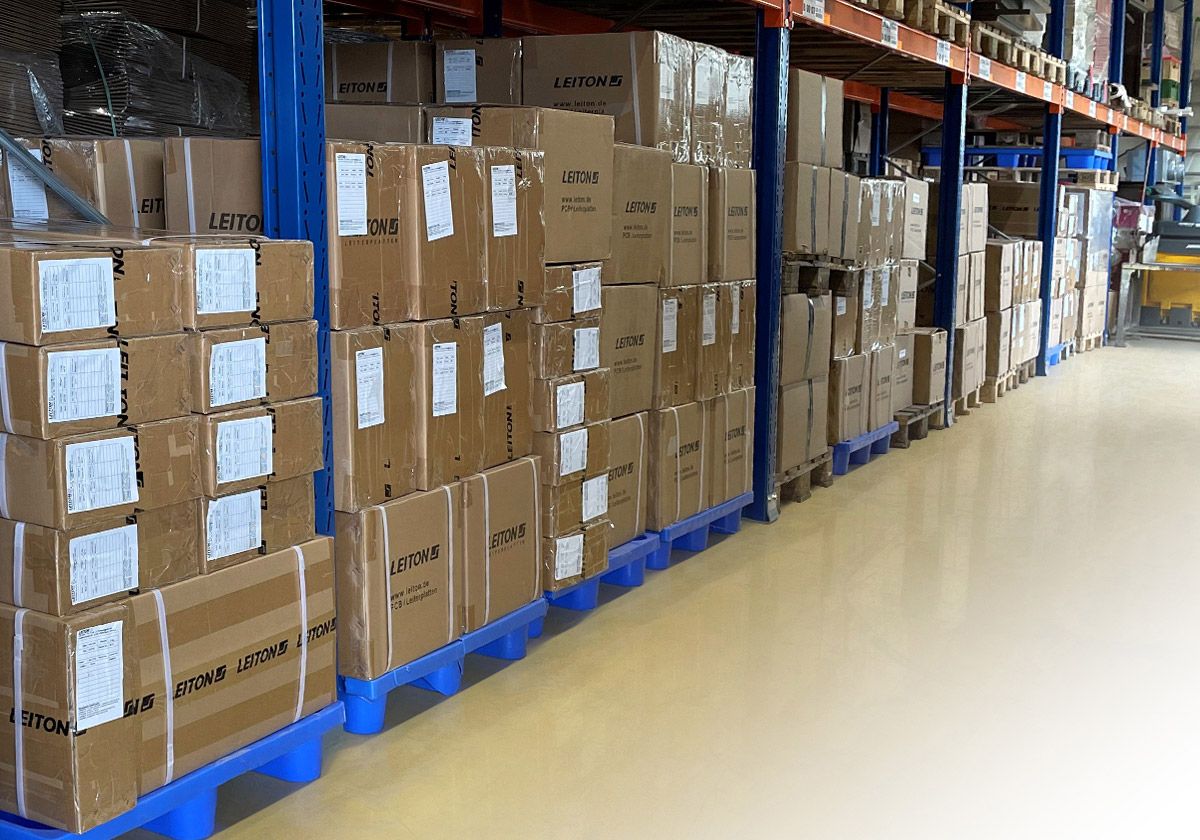

A large interim warehouse in Berlin serves as a call-off or consignment warehouse from which we dispatch within 1 working day. Customized logistics solutions ensure optimum price, liquidity, and delivery readiness.
Tech-Info & Special Technologies
Comprehensive documentation and examples of special technologies provide the basis for further special projects, and our technology experts in Berlin are happy to assist in their realization.
Trade fairs & Personal Support
Our team is personally available for you on-site, for example, at Electronica, SMT/PCIM, and Embedded World. We are also happy to visit you or welcome you at our location in Berlin.
FQC - Final Quality Check

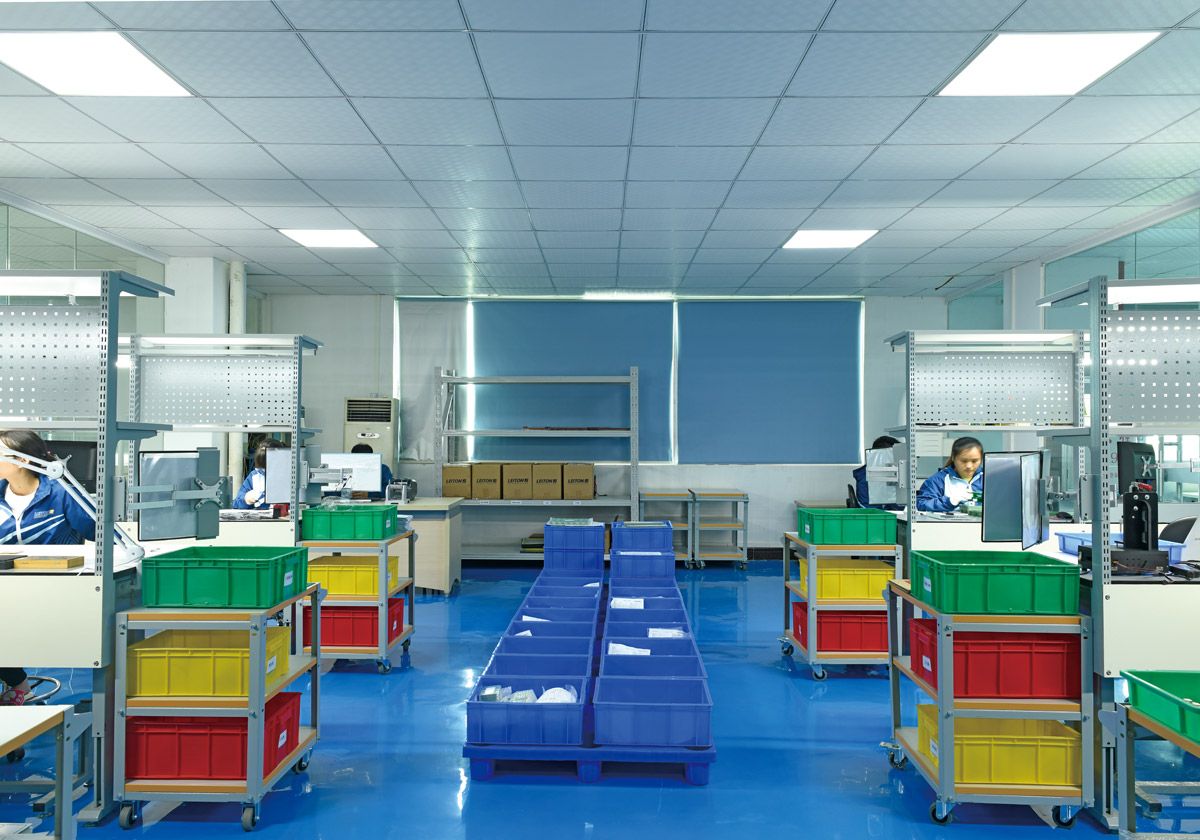

Printed circuit boards from Asia are checked and packaged by our own subsidiary, Leiton Electronics, Zhongshan, in accordance with strict German test specifications. If anything is unclear, our local team in Asia liaises directly with the partner.
Base-Material Finder
Our search engine for special base materials offers extensive filter functions and quickly generates an overview of material properties and availability with the corresponding data sheets.
Toolbox
The PCB toolbox contains helpful online tools, such as the calculation for trace heating in relation to current, weight calculators for PCBs or the calculation of the thermal resistance of aluminium IMS boards.
Impedance Measurement
We create so-called coupons for high-frequency PCBs, which are measured to determine and confirm the required impedances.
Measurement Reports

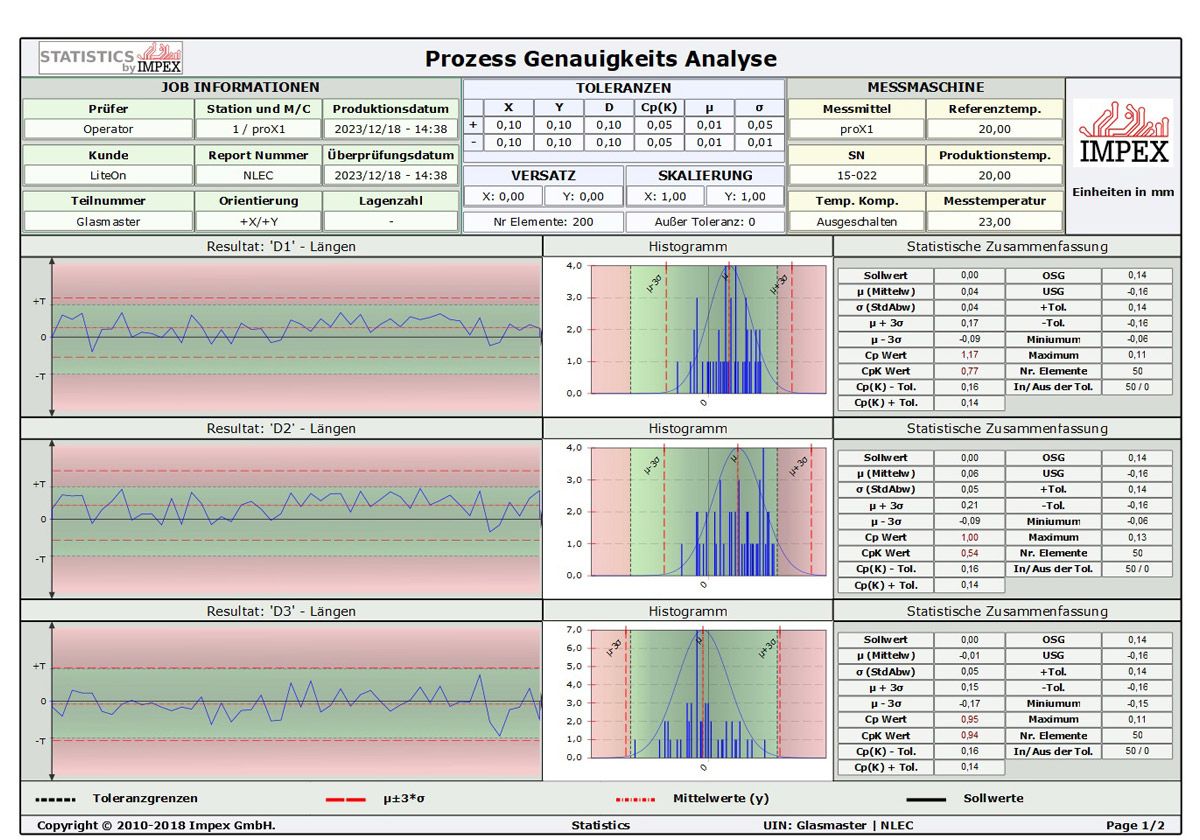

In addition to the usual micrographs, we carry out extensive measurements of contours and structures in our in-house laboratory or take resistance measurements if required.
Download Centre

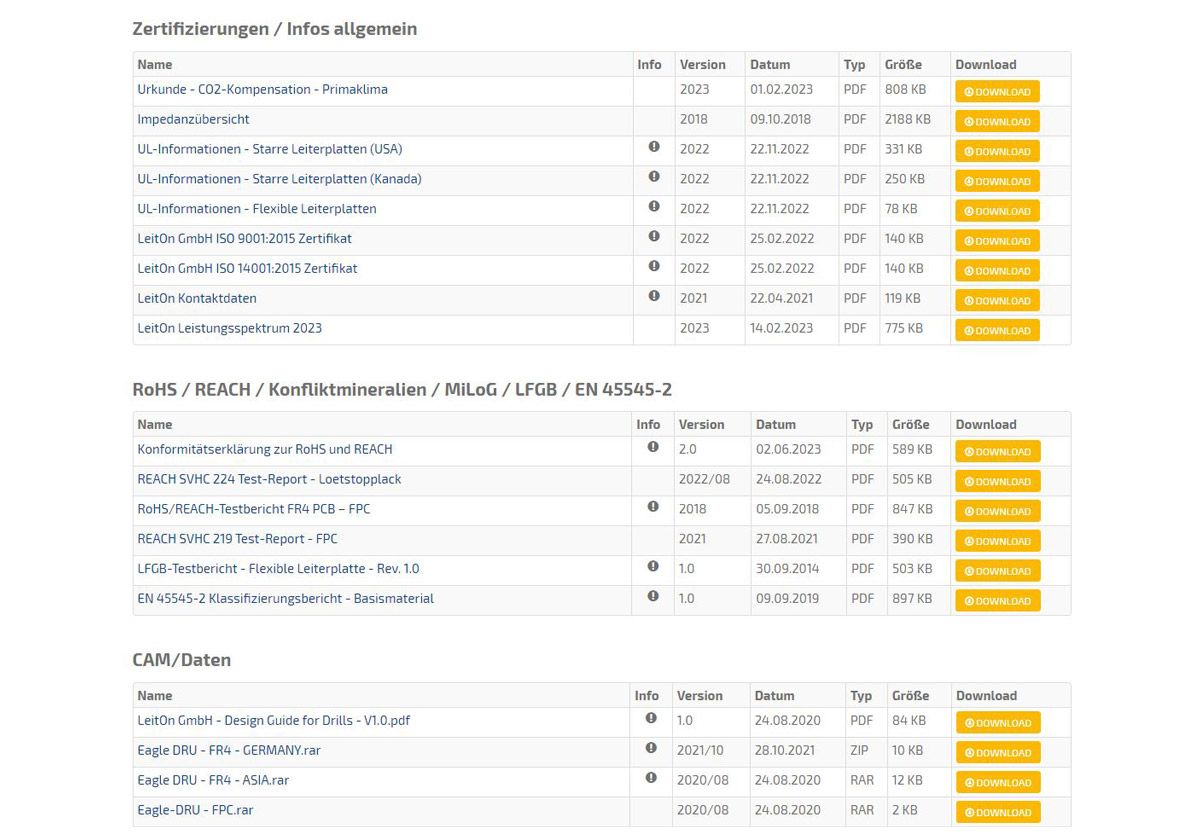

Extensive downloads are available for standard layer structures, certificates, RoHS/REACH confirmations and conflict minerals. We take compliance seriously!
