Rigid-Flex PCB (Printed Circuit Boards)

Rigid-Flex Printed Circuit Boards - Unlimited Possibilities

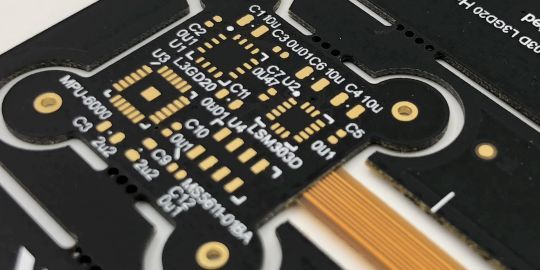

4-layer rigid-flex printed circuit board

When the two worlds of “rigid” and “flexible” meet, a rigid-flex PCB (RFPCB) is created. It combines the robustness of a traditional rigid PCB with the versatility of a flexible circuit (FPC), enabling entirely new possibilities such as miniaturization and increased reliability in applications with continuous movement. Rigid-flex PCBs add a third dimension to assemblies without sacrificing ease of processing. By integrating flexible circuits directly into the rigid structure, the need for connectors is reduced. This not only saves space and connector costs but also delivers significantly higher reliability compared to most connector solutions. While rigid-flex PCBs may have higher unit costs than standard rigid or flexible boards, their advantages – space savings, reduced assembly steps, improved reliability, and lower long-term costs – often make them the more cost-effective choice overall. With manufacturing in Bangalore, India, and long-standing expertise from Germany, Leiton supports you in designing and producing rigid-flex PCBs tailored to your specific requirements, from prototypes to series production.

Rigid-flex PCBs – Clearing Up Myths

Many developers hesitate when it comes to designing a rigid-flex PCB. Often, uncertainty about specific design rules and the assumption that rigid-flex PCBs are “too expensive” hold them back. In reality, both concerns can usually be dispelled quickly. From a design perspective, there are only a few additional points to consider compared to rigid or flexible PCBs – and our experts are here to guide you. At Leiton India in Bangalore, as well as through our global team, we provide straightforward consultation – often just a quick call is enough to clarify key questions. For cost estimation, even rough project details are sufficient, so you don’t waste time exploring a rigid-flex option without price orientation. And when it comes to true cost comparisons, it’s important to look beyond the PCB itself. Rigid-flex designs can significantly reduce or even eliminate the need for cables, connectors, and additional assembly steps – making them not only technically reliable but also cost-effective at the system level.



Contact

Aravind Mesta
Aravind Mesta
Asst Manager - Technology
Jayasimha BR
Jayasimha BR
Chief Operating Officer
Vishwakumar HC
Vishwakumar HC
Asst Manager - CAD/CAM

Your Benefits at a Glance

Technology

for rigid-flex circuit boards
Material properties FR4 TG150, TG170, glueless polyimide (PI)
Material manufacturers ITEQ, ShengYi
Material thicknesses 0,5mm to 3,0mm
Maximum PCB size 230x370mm², other oversizes on request
Copper thicknesses 18µm / 35µm / 55µm /70µm
Layer count 2 to 12 layers
Surface finishes ENIG, ENEPIG, hard gold
Mechanical machining Milling, laser cutting, scoring (v-cut), jump-scoring, chamfering, depth milling, countersinking
Drill options Micro vias, blind vias, laser vias, stacked vias, press-fit technology
Metallizations Edge metallization, stamp contours, half-opens, slotted holes, plated slots
Solder mask Coverlay, flex varnish, mixture "flex varnish & coverlay"
Paint colors: green, black, yellow, white
Special prints silkscreen
Special technologies Stiffeners PI or FR4, 3M adhesive, lift-off areas, dimples, component carriers, “book-binding” technique, special layer stack-ups, shielding-foil
Quality Management & Certifications ISO 9001, ISO 14001, UL, IPC2/IPC3, IATF 16949, EMPB, VDA2, PPAP, cuts, measurements, declarations of conformity, data sheets, ESD packaging
Logistics Framework orders, consignment stock, call-off stock, sea-air split orders



Downloads



Special Technologies

Rigid-Flex PCB

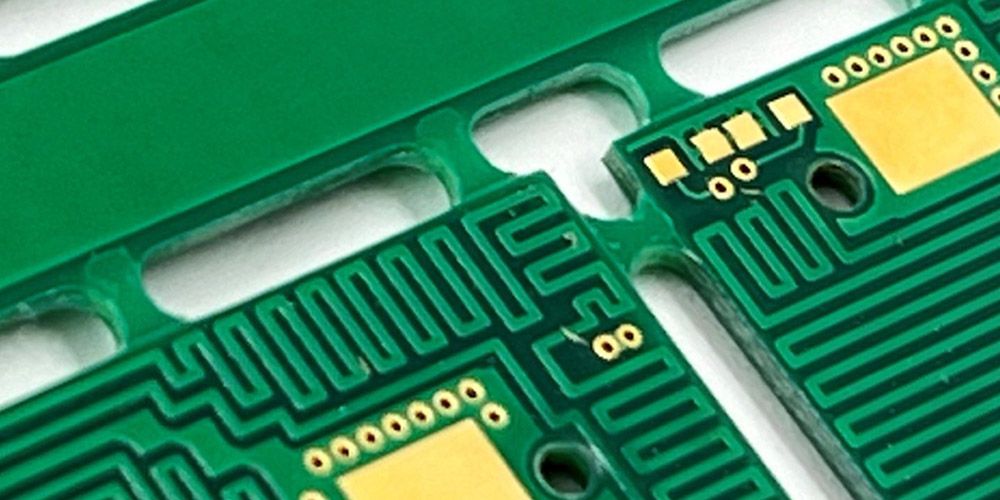

Transplant Technology
Rigid-Flex 4LI2

Our Circuit Boards in Detail

Definition: Rigid-Flex PCB

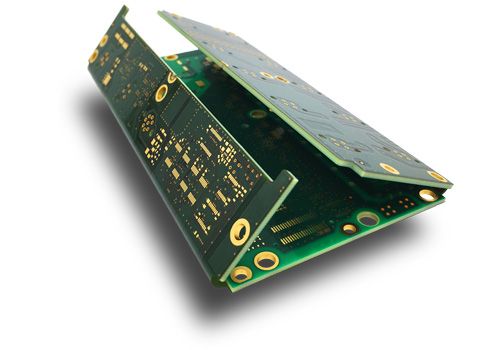

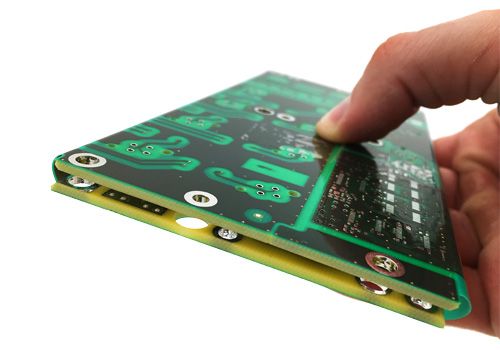

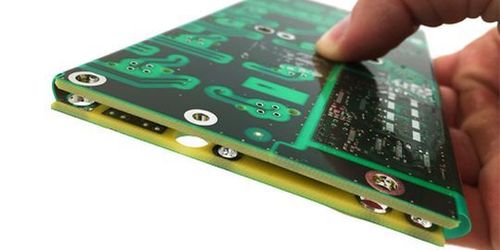

Bending in the tightest space possible up to 180°

The Rigid-Flex PCB (RFPCB), also known as a rigid-flex circuit board, is a hybrid of conventional rigid boards and flexible circuit boards. In this design, the flexible circuit layers are integrated into the rigid board, allowing them to extend directly from the rigid area. As a result, a rigid-flex PCB serves as a stable support structure and provides flexible connections for electronic components in three-dimensional or movable applications.

Advantages of Rigid-Flex Printed Circuit Boards

The advantages of rigid-flex PCBs are truly versatile:

  • 3D electronic interconnection
  • Direct connection between rigid and flexible boards
  • Reduction of connectors (cost and space savings)
  • Increased reliability by minimizing connectors (eliminating loose connections)
  • Integration of multiple boards into a single assembly
  • Miniaturization through higher compactness
  • Dynamic load capacity of flexible areas
  • Stability for complex components on rigid sections
  • Diverse and flexible combinations of multiple rigid and flexible PCBs in an RFPCB

Material & Properties of Rigid Flex PCB

Rigid-flex PCBs consist of rigid epoxy fiberglass boards and flexible polyimide circuitry. The stable and durable lamination of these significantly different materials requires strict adherence to process specifications in PCB manufacturing. When these specifications are followed, rigid-flex PCBs are extremely resilient and robust. On one hand, they are highly solderable and easily automated in assembly, similar to rigid PCBs. Moreover, they provide a sturdy platform for component mounting in their application.

The flexible portions of rigid-flex PCBs, on the other hand, offer versatile possibilities for three-dimensional installation within enclosures or even dynamic movement of parts of the circuitry. The bending radii can be relatively tight, often just a few millimeters. However, bending areas should not be located directly at the transition from the rigid to the flexible section to prevent the formation of cracks.

The temperature resistance of rigid-flex PCBs typically falls within the normal range of TG150°C, with a maximum operating temperature of approximately 130°C.

Applications of Rigid-Flex PCB

There are a range of application areas for rigid-flex PCBs. In general, they are used when either high assembly compactness (miniaturization) is required or when parts of the electronics need to be movable. In particular, connectors used to link individual PCBs through cables or flexible circuitry often occupy significant space. By integrating the rigid-flex transitions directly into the board, it allows for a significant compression of the entire electronics. In complex and tight installation situations, rigid-flex PCBs are often the right choice.

Another widely used application is to connect various electronic modules over longer distances while maintaining dynamic movability. Often, sensors or switches that are located at a certain distance from the main board are connected through a flexible section. While these connections could also be made using ZIF/LIF connectors and flex boards when space is not an issue, such constructions are more susceptible to loose connections, especially under vibrations or shocks. In this case, a direct connection from the rigid electronic PCB to the dynamically stressed flex area is the reliable option.

Types of flexible printed circuit boards (FPC)

Flexible and rigid-flex PCBs are closely related. Below, we will explain the differences briefly and concisely.

Flexible printed circuits FPC

Use case: complete encapsulation of critical components by the PCB

As the name suggests, flexible circuit boards FPC are inherently flexible. While certain areas can be partially stiffened, the conductive traces and the entire substrate are primarily designed to be flexible and bendable. Flexible PCBs are typically 1- or 2-layered, with relatively simple complexity. They are often used for interconnecting electronic components rather than supporting complex circuitry. This is primarily because flexible multilayer PCBs with more than 2 layers become less flexible and lose their inherent advantages. Moreover, complex designs with multilayer routing usually require additional components that should not be placed in flexible areas or should be stabilized with stiffeners. Therefore, for more complex designs with flexible requirements, rigid-flex PCBs are a suitable choice.

For cost-sensitive projects, flexible PCBs with stiffeners can serve as an alternative to rigid-flex boards. We are happy to provide early-stage guidance on what to consider in such cases.

Rigid-flexible printed circuit boards RFPCB

Rigid-flex PCBs are a combination of rigid and flexible circuit boards. Multiple rigid boards can be interconnected with flexible intermediate pieces, providing a high degree of freedom. Unlike pure flexible PCBs, rigid-flex boards typically exhibit high component density and routed traces in the rigid areas. As a result, rigid-flex PCBs are usually multilayered, with four or more layers.

FPCBs are classified based on the position of the flexible layers in the construction. They can be classified as "outer" or "inner" layers. For example, in a 4-layer rigid-flex PCB, the rigid areas consist of four layers, while the flexible areas are usually one or two layers. "Outer" means the flexible layers are positioned directly on the top or bottom. "Inner" means the flexible layers are only located in layers 2 and/or 3.

This classification provides important insights into the complexity, effort, and pricing of the manufacturing process. Many rigid-flex PCB manufacturers simply label them as "2R+2F" (2 rigid + 2 flexible layers). However, this does not indicate whether the flexible layers are positioned on the outside or inside. A more detailed specification of the position of the flexible layers in the construction can be achieved through the following convention.

Classification of a 4-layer multilayer with 2 flexible layers ("2R+2F"):

  1. Outer flexible layers: 4LA2
  2. Inner flexible layers: 4LI2

The first number indicates the total number of layers, in this case, "4 layers." This is followed by the position of the flexible layers, where "A" represents "outer" (German “A” for “aussen” = “outer”) and "I" represents "inner." (German: “innen”) This convention can be combined in various ways, for example, 8LI1, where "inner" flexible layers require a symmetrical layer arrangement and are positioned in the middle. The specific layer positions can be determined from the layout data. Similarly, for a 4LA2, it is irrelevant from the production perspective whether the flexible layers are on the top or bottom.

The Production of Our Printed Circuit Boards

4-layer rigid-flex with one flex layer on the outside = 4LA1

The manufacturing process of rigid-flex PCBs can become extremely complex depending on the design. However, in general, it is initially similar to that of normal multilayer PCBs. To produce boards with both rigid and flexible areas, additional and sometimes elaborate steps are required. Firstly, the areas that will become flexible must be separated from the prepregs (PP) that bond the layers of the multilayer PCB. So the prepregs are pre-cut separately, unlike in standard multilayers where they are fully pressed over the entire surface.

When planning the layer stackup, it is crucial to consider that the flexible layers span the entire construction of the rigid portion.

Another significant difference in the manufacturing process of rigid-flex PCBs is the subsequent process of milling or “depth-routing”. The partially bonded flexible layers are milled or routed to a depth just before reaching the flex layer at the points where the prepreg was removed prior to pressing. This process gives the rigid-flex PCB its characteristic feature of directly connecting rigid and flexible areas.

Rigid-flex PCBs can become highly complex, and thus, the differences mentioned above are general and simplified distinctions.

Buy Affordable Rigid-Flex PCB Online Directly From Manufacturer

As one of the very few worldwide, Leiton provides an online calculation tool for rigid-flex PCBs. Rigid-flex multilayers up to 6 layers can be easily and quickly calculated and ordered online. The construction allows for a maximum of 2 flexible layers, positioned either internally or externally. For higher-layer and more complex rigid-flex PCBs, inquiries can be made. We are happy to provide early-stage design process consultation.

FAQ

  • What is rigid-flex PCB?

    Rigid-flex PCBs are rigid-flex printed circuit boards that consist of rigid and flexible areas in one circuit board. In electronics, they serve to carry and connect electrical components (mostly 3-dimensionally). Rigid-flex PCBs are made of FR4 (epoxy resin and glass fiber) in the rigid areas, while the flex areas are made of polyimide.

    What is the difference between rigid-flex and flex PCB?

    Flexible printed circuit boards are usually flexible in their entirety, i.e. bendable. Rigid-flex circuit boards contain areas that are completely rigid. Theoretically, flexible printed circuit boards (flex PCB) can also contain so-called stiffeners, which make them rigid at certain points. However, with flexible printed circuits, these rigid reinforcements are always glued on afterwards and can therefore neither have plated vias through this rigid area, nor can components be soldered onto these rigid reinforcements. Rigid-flex printed circuit boards, on the other hand, can be completely plated through in the rigid area and these areas are PCBs that can be fully assembled on both sides.

    What are the advantages of using rigid-flex PCB?

    The advantages of rigid-flex circuit boards are:

    • Connection of rigid and flexible printed circuit boards
    • Omission of plug contacts (saves money and space)
    • Increased reliability due to fewer connectors (no loose contacts)
    • Merge multiple PCBs into a single assembly
    • Miniaturization by using all 3 dimensions
    • High dynamic load capacity in flex areas
    • Stability for complex components on the rigid areas
    • Large combination possibilities of rigid and flexible boards in a rigid-flex PCB
    Where are rigid-flex PCBs used?

    Rigid-flex circuit boards are usually used when complex electronic functions have to be combined with a high three-dimensional packing density, or when different electronic systems have to be reliably connected to one another via flexible paths. Robots are a simple example of complex three-dimensional electronic circuits that need to be mobile.

    What are rigid-flex PCBs made of?

    The rigid areas of Rigid-Flex circuit boards are usually made of FR4, a glass fiber epoxy resin mixture. The flexible areas are mainly made of polyimide (PI), with small amounts of epoxy used as an adhesive. A combination of lacquer (on the rigid areas) and polyimide epoxy masking film (on the flexible areas) is commonly used as a solder stop. In addition, copper is the conductive material. Nickel-gold surfaces (ENIG or ENEPIG) are mostly used for better solderability of the free contacts, but tin is also possible.

    How are the layers of a flex-rigid PCB constructed?

    The flexible areas are mainly made of polyimide (PI). In the rigid areas, these polyimide layers are laminated with epoxy resin glass fiber sheets (FR4) to form a multilayer. The flexible PI layers can be inside the pressed multilayer or outside. Combinations or multiple flexible layers in the rigid area can also be integrated into complex rigid-flex structures (e.g. “bookbinding” technique).

    What test methods are used for rigid-flex PCBs?

    Rigid-flex circuit boards are tested in exactly the same way as conventional rigid FR4 circuit boards. In addition to various visual inspections during production, an automatic optical inspection (AOI) and an electrical test (ET) are usually carried out at the end. Under certain circumstances, pull-off tests or shear tests can also be carried out on the flexible layers to check stability. Another destructive test to ensure stability is "HAL-dipping". A rigid-flex circuit board representative of the manufactured batch is immersed in tin several times at a temperature of 260°C for approx. 10 seconds to check whether the layers are loosening (delaminating).

    How much does a rigid-flex PCB cost?

    The costs of printed circuit boards of all kinds and types primarily depend primarily on the following factors:

    • Quantity Manufactured
    • Size of the circuit board
    • Complexity of the circuit board (e.g. number of layers)
    • Production time
      Considering all these factors, the cost of a rigid-flex PCB can actually range from a few cents to several thousand euros. A rule that is almost always applied is that with the same factors mentioned above, rigid-flex circuit boards always cost more than purely rigid or flexible circuit boards.
    How long does the production of rigid-flex printed circuit boards take?

    The production time of rigid-flex printed circuit boards, depends heavily on the quantity and complexity. In general, express prototypes can be produced within a few days. Larger series take a few weeks. In principle, however, the production time for rigid-flex PCBs is longer than for normal rigid or flexible circuit boards. This is due to various additional processes required for production.

    What is the bending radius of rigid-flex PCBs?

    The possible bending radius of rigid-flex circuit boards refers only to the flexible areas, as only these can be bent. The bendability of this flexible area depends on the number of layers, copper density and polyimide material thickness chosen. The fewer layers, less copper and thinner the material, the higher the bendability. A rough calculation aid is available in our toolbox.
