Flex to Starr Soldering - a cost-effective alternative to Starrflex.

Modern EV battery technologies often require extremely large flexible printed circuit boards (PCBs). These are often equipped with NTCs (Negative Temperature Coefficient thermistors) and serve to monitor heat development across the entire battery – often over lengths of one meter or more. When it is necessary to transition these flexible PCBs into a rigid PCB, there are initially two options. Firstly, one can use conventional ZIF/LIF connectors. However, these have the disadvantage of not being fail-safe over time and requiring a certain height. Additionally, they may introduce transition resistances that are undesirable. The second option is to manufacture a rigid-flex PCB, but at this size, it would represent a significant cost factor.

Video: connecting two flexible printed circuit boards using hot bar soldering

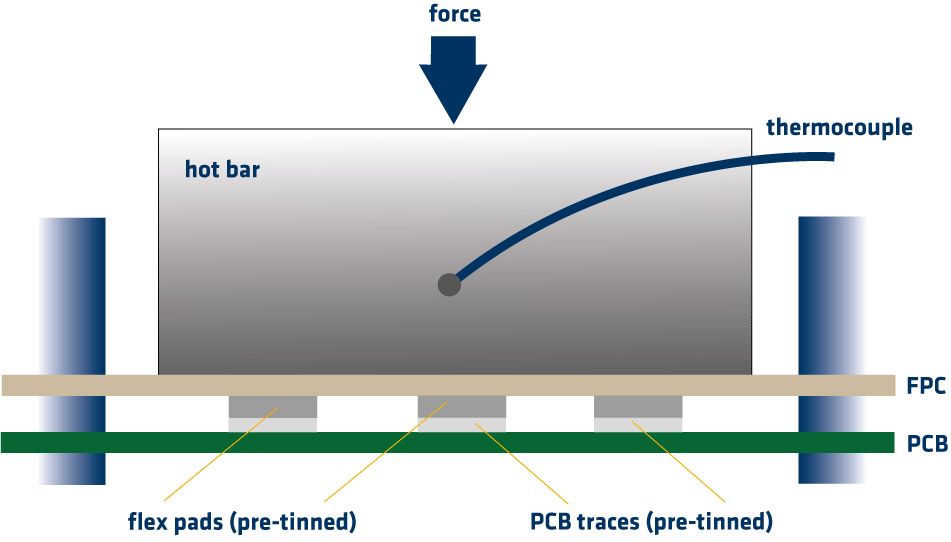

The third, economical, and sustainable solution is the process of "Hot-Bar Soldering". In this process, the flexible PCBs and the rigid PCBs are separately and inexpensively manufactured. They are then soldered together using the Hot-Bar soldering method. This creates a permanent, stable connection between the flex and rigid that is flat, firm, and virtually resistance-free.

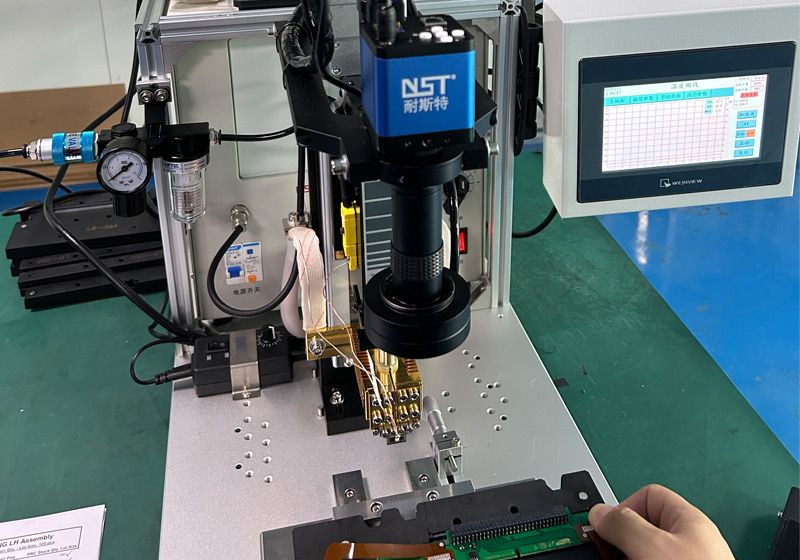

Hot-Bar Soldering Station with holder and camera system.

For precise alignment, appropriate adapters are manufactured. Existing holes in the circuit boards are used for alignment whenever possible. In the case of flexible circuit boards, additional positioning tabs with holes can be added, which are later removed.

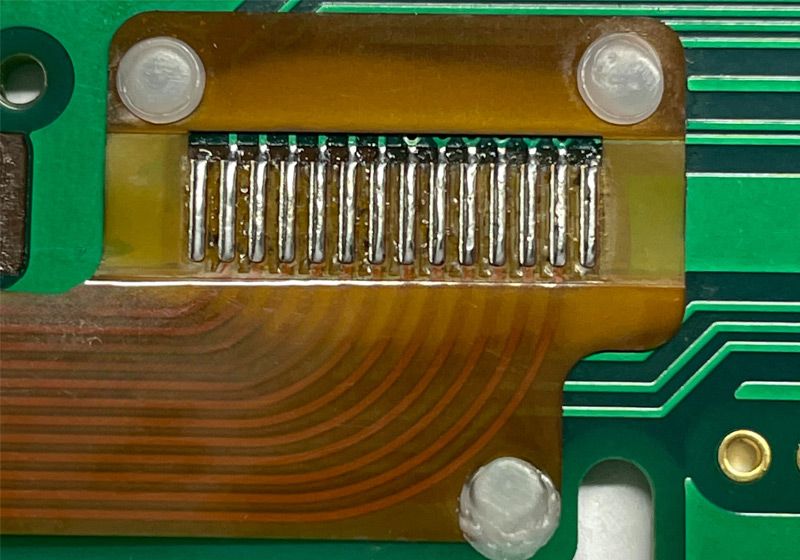

Final soldering of the flex PCB onto the rigid PCB (tin has penetrated through additional dielectric layers in the flex).

To mechanically secure against shear and tensile forces, additional plastic pins can be inserted through the flexible and rigid PCB and fixed in place.

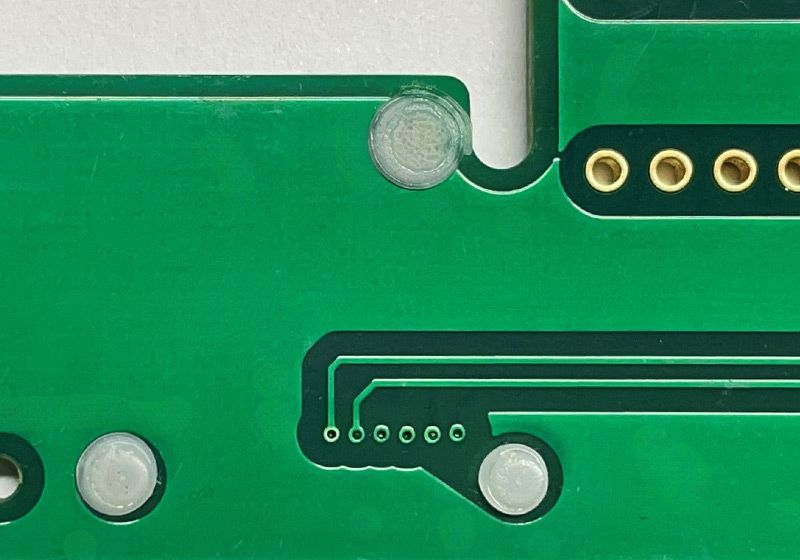

Plastic pins for mechanical stabilization - Recommendation: 2mm pins in 2.05mm dielectric layers.

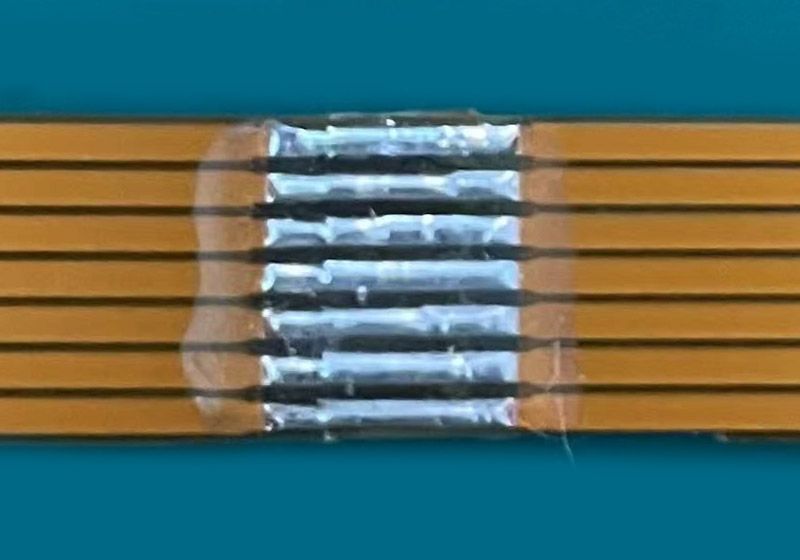

Instead of pins, a slightly flexible adhesive can also be used to additionally relieve the connection points. A transparent, UV-curing, semi-flexible adhesive is used for this purpose.
