Step and Frame PCBs - Differences & Application
Frame and Step Technology are similar yet fundamentally different printed circuit board (PCB) technologies. They form a kind of "2.5D technology," where the typically two-dimensional PCB surfaces are modified with elevations or recesses. The primary difference between frame and step PCBs is whether copper structures are required on the outer layers or if they only exist internally.
Frame Technology

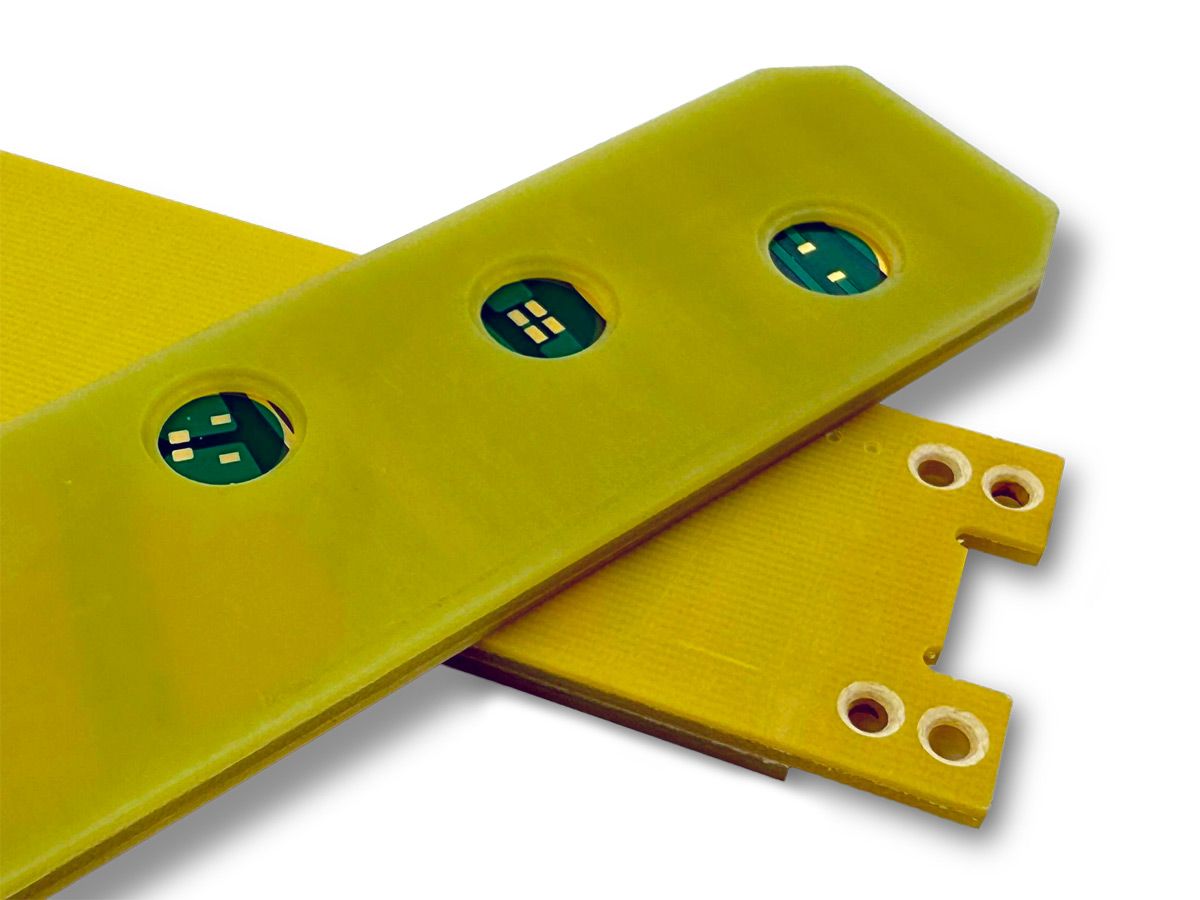

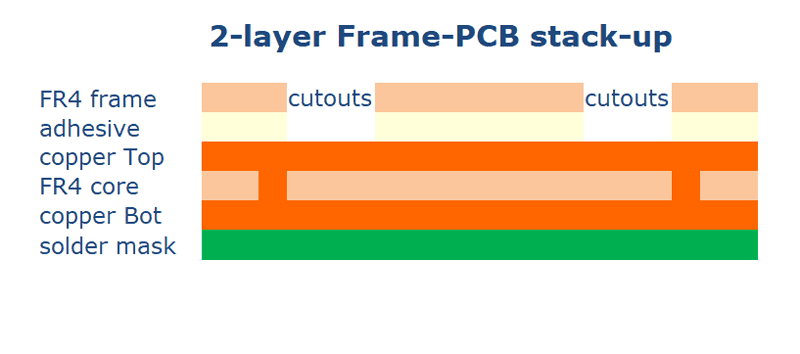

In Frame Technology, one or both sides of the PCB are laminated with FR4 parts using 3M adhesive or no-flow prepreg (which is more expensive). These FR4 frames usually provide mechanical protection. In some cases, the cutouts serve as "pockets" for encapsulating mounted components.
Advantages of Frame Technology:
- Cost-effective process
- Possible on both sides, with varying thicknesses
- Special mechanical processes are possible
- Contactable, internal structures
- High-layer count multilayers can be cost-effectively combined with frames
Disadvantages of Frame Technology:
- The outer side of the frame has no copper
- No conductive connection from the outside to the inner layer
- 3M adhesive is less stable than prepreg bonding
- Placement limitations (must be adjacent to the contour)
- Frame edges may show slight resin leakage or minimal resin retraction
Step Technology

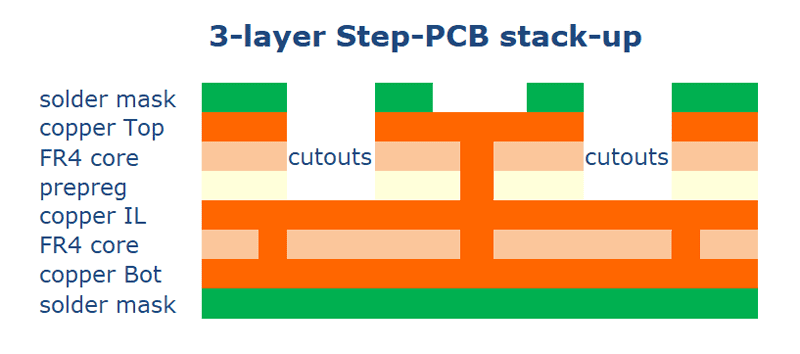

In Step Technology, complete multilayer PCBs are produced using laminate technology. Laminate technology refers to a process where the outer layers are not pressed as foil but are instead complete two-layer cores. However, the areas that will later be exposed are deep-milled from the back of the core and cut out in the prepreg before pressing. After completing the multilayer, these areas are deep-milled so that the unbonded parts can be removed, and the inner layers are exposed.
Advantages of Step Technology:
- Possible to expose on both sides, with varying thicknesses
- Copper structures on both the inside and outside
- Stable prepreg bonding
- Flexible placement of the exposed areas
- Special mechanical processes are possible
- Contactable, internal structures
Disadvantages of Step Technology:
- Complex, expensive process
FAQ
- What Are Frame PCBs?
"Frame PCBs" are a type of 2.5D technology, where non-plated FR4 parts are glued onto the PCB.
When Are Frame PCBs Used?Applications include side protection for specific components. Additionally, open frame cutouts allow for the use of additional potting materials.
How Are Frame PCBs Manufactured?After the PCB fabrication, milled frame parts (usually FR4) are precisely glued onto one or both sides using 3M adhesive.

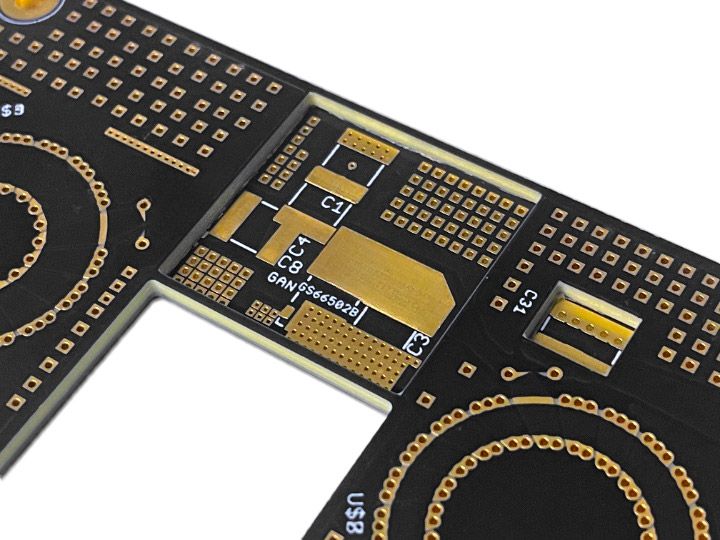

What Are Step PCBs?"Step PCBs" are a 2.5D technology, where different plated-through areas have varying height levels.
What Is the Difference Between Frame and Step PCBs?Step PCBs can have plated through-holes (PTH) and copper structures on all levels (more expensive). Frame PCBs use glued non-plated parts, making them a more cost-effective alternative.
What Are the Advantages and Disadvantages of Frame PCBs?Advantages:, Cost-effective, different thicknesses possible on both sides, complex multilayers can be expanded using frames at a low cost
Disadvantages: No plated through-holes or copper structures on the frame, 3M adhesive is less stable than prepreg, requires precise contour alignment
What Are the Advantages and Disadvantages of Step PCBs?Advantages: Plated through-holes and copper structures are possible on all stepped levels, stable prepreg bonding, internal and external copper layers possible
Disadvantage: Complex and costly manufacturing process
